About the Barndominium Plan
- Area: 2134 sq ft
- Bedrooms: 2
- Bathrooms: 2
- Stories: 1
- Garage: 0

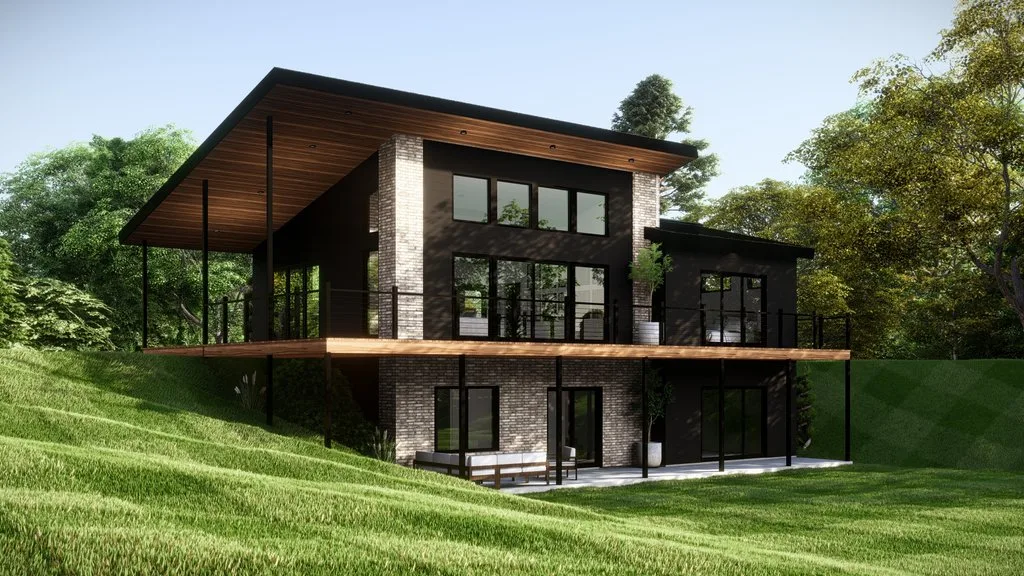

- This modern design floor plan is 2134 sq ft and has 2 bedrooms and 2 bathrooms.
- FULL SPECS & FEATURES
- Basic Features
- Bedrooms : 2
- Baths : 2
- Stories: 1
- Garages: 0
- Dimension
- Depth : 32′
- Height : 17′ 3″
- Width : 53′
- Area
- Total : 2134 sq/ft
- Decks : 630 sq/ft
- Lower Floor : 1067 sq/ft
- Main Floor : 1067 sq/ft
- Patios : 307 sq/ft
- * Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
- Ceiling
- Lower Ceiling : 9′
- Main Ceiling : 9′
- Roof
- Primary Pitch : 3/12
- Roof Framing : Truss/Stick
- Roof Load : 30 psf
- Exterior Wall Framing
- Framing : 2×6
- Insulation : R-19
- Bedroom Features
- Main Floor Master Bedroom
- Walk In Closet
- Kitchen Features
- Breakfast Nook
- Kitchen Island
- Additional Room Features
- Great Room Living Room
- Main Floor Laundry
- Unfinished Future Space
What’s included in this plan set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4″ scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4″ scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Main Floor
