About the Barndominium Plan
- Area: 2417 sq ft
- Bedrooms: 4
- Bathrooms: 3
- Stories: 2
- Garage: 1
- This simple two-story barndominium boasts 4 bedrooms and 3 baths, with the main suite and a guest located on the first floor. The great room, dining and kitchen are open and located below a large loft on the second floor. A garage has a drive through layout so that you can enter from either side of the home.
- FULL SPECS & FEATURES
- Basic Features
- Bedrooms : 4
- Baths : 3
- Stories: 2
- Garages: 1
- Dimension
- Depth : 78′
- Height : 29′
- Width : 44′
- Area
- Total : 2417 sq/ft
- Garage : 470 sq/ft
- Main Floor : 1510 sq/ft
- Porch : 772 sq/ft
- Upper Floor : 907 sq/ft
- * Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
- Ceiling
- Garage Ceiling : 14′ 4″
- Main Ceiling : 9′
- Upper Ceiling Ft : 9′
- Roof
- Primary Pitch : 8:12
- Roof Type : stick
- Secondary Pitch : 3:12
- Exterior Wall Framing
- Exterior Wall Finish : board & batten with brick skirt
- Framing : 2×4
- Bedroom Features
- Main Floor Bedrooms
- Main Floor Master Bedroom
- Upstairs Bedrooms
- Walk In Closet
- Kitchen Features
- Breakfast Nook
- Eating Bar
- Kitchen Island
- Walk In Pantry Cabinet Pantry
- Additional Room Features
- Family Room Keeping Room
- Loft
- Main Floor Laundry
- Garage Features
- Rear Garage
- Side Entry Garage
- Lot Characteristics
- Suited For Corner Lot
- Suited For Narrow Lot
- Outdoor Spaces
- Covered Front Porch
- Wrap Around Porch
- More
- Wheelchair Adaptable
What’s included in this plan set
Purchasing a CAD set gives you an unlimited build license.
- Cover Sheet – May include index, front view of home, definitions, etc.
- Foundation Plan – Typically includes dimensioned foundation plan with footing details.
- Dimensioned Floor Plan – Electrical may be shown.
- Exterior Views – Four exterior views of the residence with other miscellaneous details.
- Roof Plan – Birds eye view showing all ridges, valleys and other necessary information.
- Electrical Plan – Displays all lighting fixtures, outlets and other necessary electrical items. These items may be shown on the Dimensioned Floor Plan. Switches and arcs are not shown and should be located by owner/contractor at site.
- Wall Section(s) – Detail of wall materials and assembly.
- Building Section(s) – Section through home displaying necessary information about framing and other miscellaneous data.
- Cabinet Elevations – Displays interior kitchen cabinet views.
________________________
*Material List Note: When a material list is ordered, a list of the materials needed to build this plan will be sent. Please note that the materials list will conform to the standard plan (slab or crawlspace only). Additional options such as a Basement or 2×6 Wall conversion will not be reflected in the material list.
________________________
Note about 2×6 Wall Option: If choosing the 2×6 wall option, the added stud depth will be applied towards the interior of the walls.

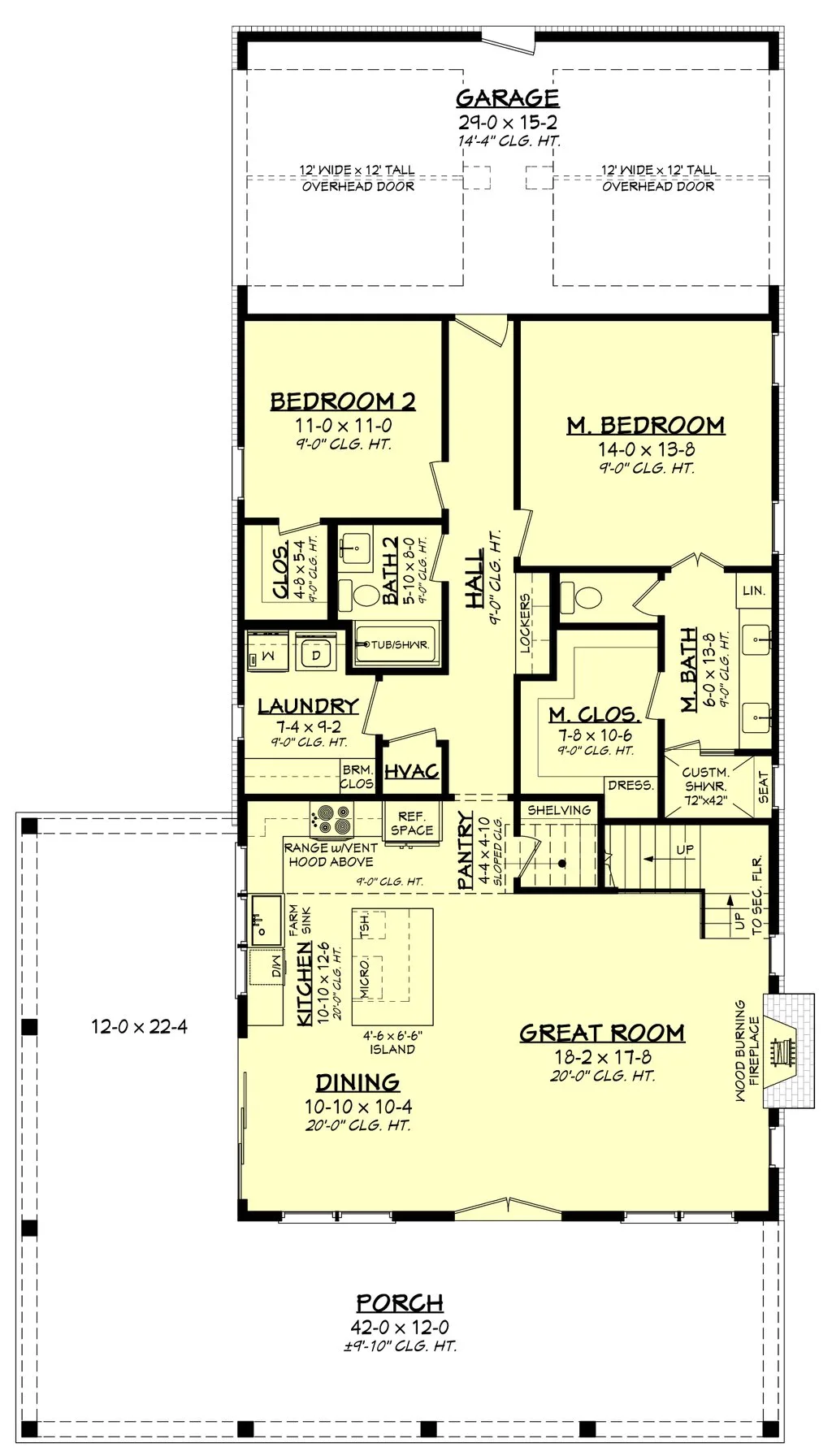

Main Floor
