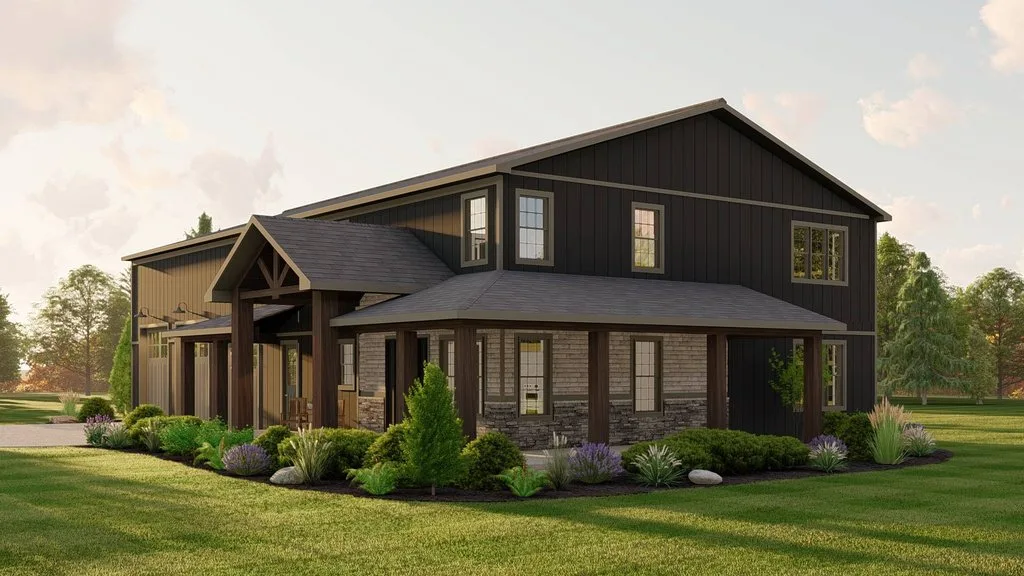

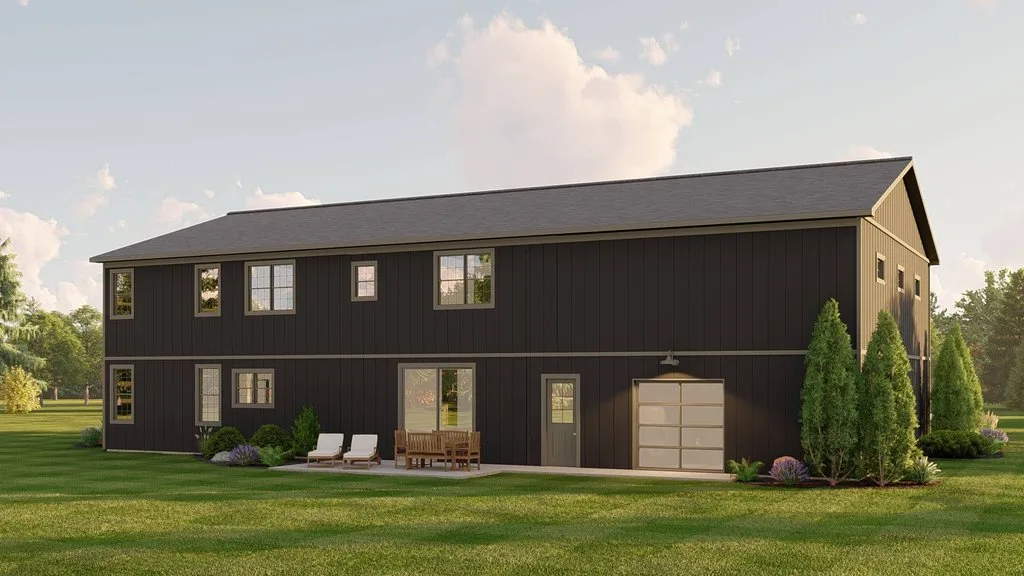

About the Barndominium Plan
- Area: 2397 sq ft
- Bedrooms: 4
- Bathrooms: 4.5
- Stories: 2
- Garage: 3
- This barndominium design floor plan is 2937 sq ft and has 4 bedrooms and 4.5 bathrooms.
- FULL SPECS & FEATURES
- Basic Features
- Bedrooms : 4
- Baths : 4.5
- Stories: 2
- Garages: 3
- Dimension
- Depth : 44′
- Height : 29′ 3″
- Width : 82′
- Area
- Total : 2937 sq/ft
- Bonus : 430 sq/ft
- Garage : 1745 sq/ft
- Main Floor : 1452 sq/ft
- Porch : 746 sq/ft
- Upper Floor : 1485 sq/ft
- * Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
- Ceiling
- Garage Ceiling : 21′ 5″
- Main Ceiling : 10′
- Upper Ceiling Ft : 9′
- Roof
- Primary Pitch : 4/12
- Roof Framing : Truss
- Roof Load : 30 psf
- Roof Type : Shingles
- Secondary Pitch : 7/12
- Exterior Wall Framing
- Exterior Wall Finish : Vertical Metal Siding
- Framing : 2×6
- Insulation : R-19
- Bedroom Features
- Main Floor Master Bedroom
- Walk In Closet
- Kitchen Features
- Breakfast Nook
- Kitchen Island
- Additional Room Features
- Great Room Living Room
- Loft
- Main Floor Laundry
- Mud Room
- Garage Features
- Front Entry Garage
- Outdoor Spaces
- Wrap Around Porch
What’s included in this plan set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4″ scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4″ scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Main Floor
